All kinds of microscopy are important tools for studying the topology of samples. Whereas the resolution of conventional optical microscopy, which has been used for more than 500 years, is restricted by the wavelength of light in the visible range, atomic resolution can be achieved with the scanning electron, the transmission electron microscope (TEM) and with the scanning force microscopy.

In our group we have two scanning electron microscopes (SEM), a transmission electron microscope (TEM) and a scanning probe microscope (SPM). The latter one allows measurements in the scanning force (AFM) as well as in the magnetic force microscopy (MFM) mode.

In a transmission electron microscope (TEM), the sample is continuously illuminated by a widened electron beam. The transmitted electrons are guided onto a fluorescent screen by an electron optical system to form an image. By varying the lens currents of the electromagnetic lens it is possible to adjust its focal length, and thus to choose a magnification.

The TEM available in our institute, a Philips CM12, is capable of performing bright field imaging and transmission electron diffraction. The maximum acceleration voltage of the TEM is 120 keV, which leads to a minimum de Broglie wavelength for electron diffraction of 3.53e-12 m. It is equipped with a LaB₆ cathode, the maximum magnification ranges up to 600000x.

The samples can be prepared on two different types of substrates. First, amorphous carbon films, supported by copper grids are available. These carbon films feature a very low background in diffraction experiments, because of the low atomic number and their low layer thickness. Second, there are silicon nitride membranes supported by silicon frames.

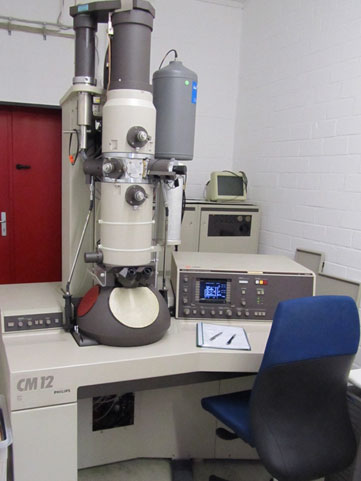

Transmissionselektronenmikroskop Philips CM12 — Fig. 1: TEM Philips CM12.

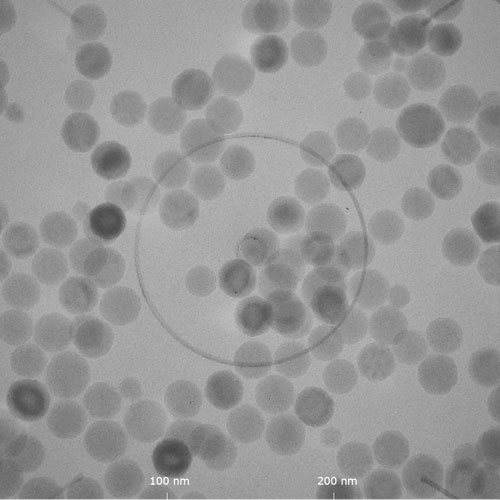

Eisenoxidnanopartikel TEM — Fig. 2: TEM bright field image of iron oxide magnetic nanoprticles (300000x).

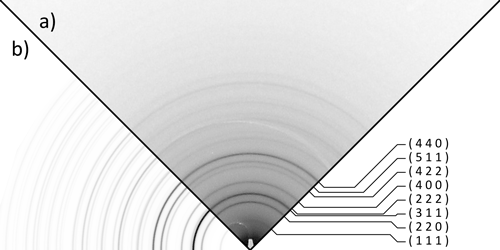

Elektronenbeugung TEM — Fig. 3: Transmission electron diffraction of of iron oxide magnetic nanoprticles in comparison with a simulated diffraction pattern.

Using the TEM it is, for example, possible to directly investigate the morphology, size distribution and crystal structure of nano particles, see figures 2 and 3.

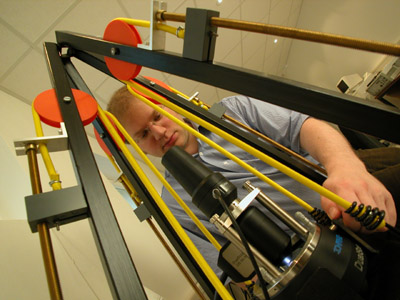

Rastersondenmikroskop — Fig.1: Scanning Probe Microscope

In our group we have two scanning electron microscopes (SEM) and one scanning probe microscope (SPM, Fig. 1). The analogue SEMs are equipped with conventional filament electron sources so that a high resolution can only be achieved by comparably electron energies (> 10 keV). As a consequence samples should be metallic or metallized to prevent them from charging up.

SPM is a relatively new technique. Binning and Rohrer introduced in 1982 the scanning tunneling microscope where the tunnel current between a very sharp metallic tip and the sample is used to get information on the sample morphology. Clearly, the disadvantage of this technique is that samples have to be conducting. Lateron, a variety of SPM techniques has been developed, as e.g. the scanning force microscopy (SFM) which is based on atomic forces between tip and sample and magnetic force microscopy (MFM) where a magnetized tip interacts with the domains of a magnetic sample. In contrast to optical microscopy and SEM, SPM provides a real 3-dimensional image of the sample topography.

In our group we have a SPM built at the Danish company DME. The microscope utilizes a tube piezo scanner, i.e. the probe is scanned across the sample, and allows one to scan across a maximum area of 50 µm x 50 µm. Currently, we have the option to operate the SPM in the contact mode (highest resolution but requires nearly flat surfaces), in the ac mode where the cantilever with the tip oscillates with a frequency of about 170 kHz up and down and the controller uses deviations in oscillation amplitude and phase to reconstruct the surface topography, and Magnetic Force Microscopy (MFM).

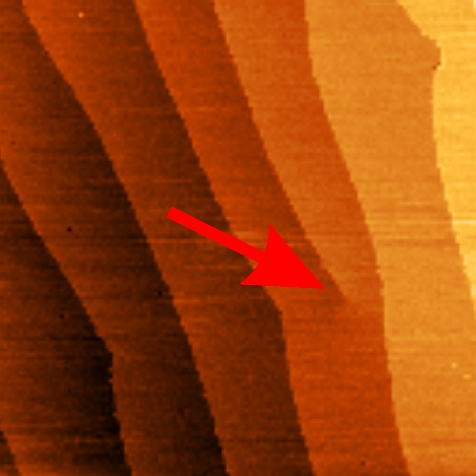

Fig 2: 5 µm x 5 µm AC mode scan of SrTiO3 substrate after HF etch and annealing. Unit cell steps are clearly visible. The arrow shows a scew dislocation at the surface of the chrystal lattice

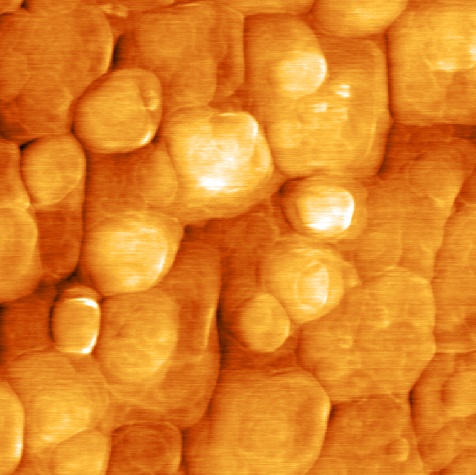

ybco — Fig 3: 1,5µm x 1,5µm DC mode scan of YBa2Cu3O7 thin film

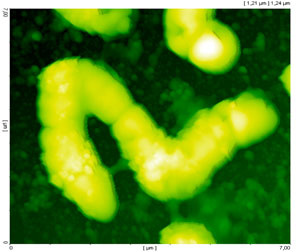

bacillus megaterium — Fig. 4: AFM-Image of Bacillus megaterium

In addition to our studies on thin-films and thin-film structures we plan to investigate biological samples in liquids within the SFB 578.

In addition to the microscopy mode the system allows spectroscopic measurements. Here we concentrate on recording force-distance curves, which provide information e.g. about binding forces between molecules.

MFM

By using a magnetically coated tip on the cantilever the SPM allows one to perform magnetic force microscopical (MFM) measurements.

In a scanning electron microscope (SEM), a focused electron beam scans the sample surface line by line. Simultaneously, the response of the sample, typically the emission of secondary electrons, is recorded. Displaying the measured signal as a function of the illuminated position results in an image of the sample.

We possess three scanning electron microscopes in our institute. The two Philips devices (SEM 505 and SEM 525) are equipped with a common tungsten hairpin filament, and a LaB_6 electron source, respectively. High resolutions can only be achieved, when using higher accelerating voltages (>10 keV). Hence, the samples must be metallic or metallized, to avoid charging effects. Both devices have an adjustable accelerating voltage of up to 30 kV, and a maximum magnification of 150000. Since 2005 we also own a Zeiss SUPRA 35, equipped with a field emission gun (fig 1). The acceleration voltage can be varied between 100 V and 30 kV, the maximum magnification is 900000x.

An interesting aspect is the extension of a SEM to an electron beam lithography system, which is able to write different shapes directly into an electron sensitive resist. To do so, it is necessary to navigate the electron beam arbitrarily across the sample, and to be able to blank it immediately. This functionality is provided by a Raith ElphyPlus system, in our case. By means of the included software, the electron sensitive resist can be exposed with a computer designed structure. Afterwards the subsequent micro structuring steps are applied.

Magnetit-Nanoteilchen — Fig. 2 depicts a SEM image of magnetite nanoparticles with organic shell. In addition, the SEM is equipped with a STEM detector for recording SEM images in the transmission mode.
