The elenia's High Voltage and Vacuum Technology team conducts research in various areas. Our areas of expertise include insulation materials and systems as well as testing and diagnostics.



High voltage and vacuum technology

High voltage technology uses different voltage forms for testing insulating materials. For example, for alternating voltage in cryogenic nitrogen gas, the electrical strength at high gas densities is considered. The motivation for this is to support the design of the insulation system of superconductor applications, which can consist of liquid and/or gaseous nitrogen depending on the operating mode and condition. Furthermore, it also goes into the reverse density range, into the high vacuum. There, investigations are performed with lightning impulse voltages in the vacuum vessel. In order to characterize the electrical strength especially in vacuum switches, a test setup with transient return voltage has been realized.

In the field of vacuum technology, especially circuit breakers are considered. The energy turnaround changes the switching tasks in the distribution networks of the medium and high voltage level. Decentralized generators, capacitive and inductive reactive power supply, storage and loads must be automatically switched on and off in the future. The increase in required switching capacity, automation and thus switching frequency require an increased use of circuit breakers. The vacuum switching principle is ideally suited for these new tasks. The development goals are therefore focused on improving the switching performance with a long service life and compact design, also against the background of the replacement efforts of SF6 switches in the high voltage level due to the high greenhouse gas potential of SF6. Thus, the switching behavior in vacuum for higher voltages and thus for larger switching distances becomes the current object of investigation.

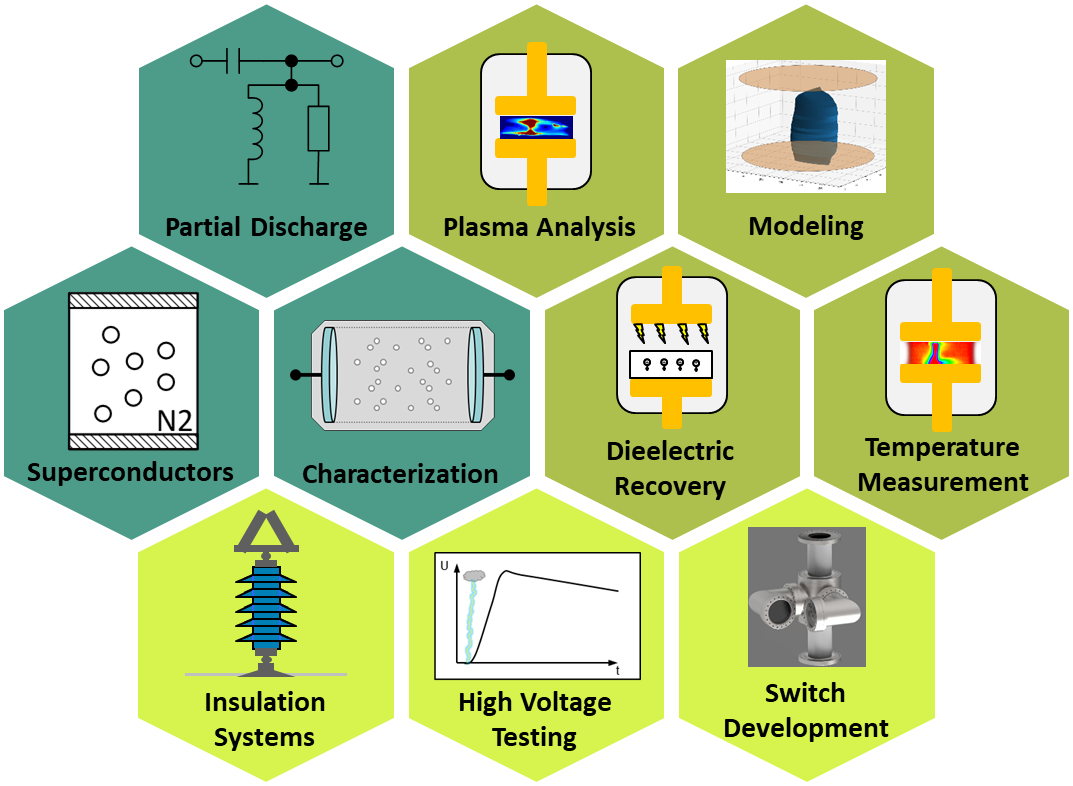

Core Competencies

High Voltage Research

  • Surge voltage generator for generating high lightning impulse voltages
  • AC voltage transformer for the generation of high AC voltages
  • Greinacher cascade for the generation of high direct voltages

Synthetic power test

  • Synthetic examination with short circuit current and transient recovery voltage
  • Electrical, optical and spectral investigations in test chambers under vacuum during switching operations
  • Plasma radiation examination as well as plasma movement and distribution
  • Thermal analysis of contact surfaces

Test switch development

  • Design, construction, assembly and commissioning of individual test switches
  • Mechanical and electrical simulation
  • Implementation of customized motion curve for contact separation via motor control

Insulation material testing

  • Characterization of insulating materials (determination of surface and volume resistance, loss factor, permittivity)
  • Aging and conditioning processes
  • Partial discharge measurements
  • Variable environmental conditions
  • Interfacial investigations

Superconductors

  • High voltage pressure cryostat for investigations with liquid and gaseous nitrogen
  • Experimental investigation and simulation (COMSOL) of insulation systems for superconductors
  • Experimental investigation and simulation (COMSOL, PSCAD) of the high current properties of superconductors

Topics

Testing equipment
Hochspannungslabor

High voltage and high current laboratories are available for component testing:

  • High voltage hall
  • Synthetic power test field
  • HVDC test facility
  • Laboratories for the diagnosis of insulating materials



Selected data of our test facilities are listed under the following link: Laboratories of the elenia.

Teaching

The following elenia courses are offered in the field of high-voltage technology:

Bachelor

  • Fundamentals of electrical power engineering (SoSe)
  • Transmission network technologies (WiSe)

Master

  • Transmission network technologies (WiSe)
  • High Voltage Technology I (WiSe)
  • High Voltage Technology II (SoSe)
  • Internship High Voltage Technology (WiSe)
  • Electrical power systems I (WiSe)
  • Electrical energy systems II (SoSe)
  • Numerical calculation methods (WiSe)
  • Computer Internship Numerical Calculation Methods (SoSe)

Further information on teaching can be found at:
