Venus Express

Back



Venus is our nearest planetary neighbour and orbits closer around the sun than the Earth. The mean mass densities and radii of Earth and Venus are very similar and therefore Venus is often regarded as Earth′s “sister planet”. However, the near-surface conditions on both planets differ considerably; while Earth′s mean surface temperature is 15°C and the main constituents of the Atmosphere are nitrogen (78%) and oxygen (21%), the mean temperature on Venus is 477°C and its atmosphere is almost exclusively composed of carbon dioxide (95%). The geological and geophysical exploration of Venus began in the 1960s and since then a large number of missions (flybys, orbiter and lander) built and operated by the Soviet Union and the United States have investigated the surface structure, the composition and dynamics of the atmosphere as well as the physics of the plasma environment surrounding Venus. Venus Express is the first European mission to the planet Venus and surveys the dynamics and chemistry of the Venusian atmosphere, the interaction processes between the atmosphere and the surface as well as the interaction of the interplanetary medium (solar wind) with Venus′ upper atmosphere.
A Soyuz-Fregat launcher set ESA′s spacecraft on its course to Venus from the Russian Baikonur Cosmodrome in Kazakhstan in November 2005. In April 2006 the spacecraft was inserted into its polar orbit around Venus with a pericentre altitude of ~250 km and an apocentre altitude of ~66000 km about the planet′s surface. Venus Express is equipped with seven scientific instruments which gather data about the surface, the atmosphere and the space plasma environment during the different observation phases of each orbit.



Südliche Halbkugel der Venus vom Äquator (rechts) bis zum Pol (links); aufgenommen am 23. Juli 2007 mit der Venus Monitoring Camera (VMC) im ultravioletten Bereich (365 nm) in einer Entfernung von 35000 km zum Planeten
View of the southern hemisphere of Venus from equator (right) to the pole (left). The image was taken with the Venus Monitoring Camera (VMC) in the ultraviolet at 365 nanometres on 23 July 2007 as Venus Express was 35000 km from the surface of the planet.
Venus Express

Instruments on board Venus Express

  • Magnetometer MAG: Magnetic field measurements
  • Visible and Infrared Thermal Imaging Spectrometer VIRTIS: Spectrographic mapping of atmosphere and surface
  • Planetary Fourier Spectrometer PFS: Atmospheric vertical sounding by infrared Fourier spectroscopy
  • Spectroscopy for Investigation of Characteristics of the Atmosphere of Venus SPICAV/SOIR: Atmospheric spectrometry by star or Sun occultation
  • Venus Monitoring Camera VMC: Ultraviolet and visible imaging
  • Venus Radio Science VeRa: Radio sounding of atmosphere
  • Analyser of Space Plasma and Energetic Atoms ASPERA-4: Neutral and ionised plasma analysis

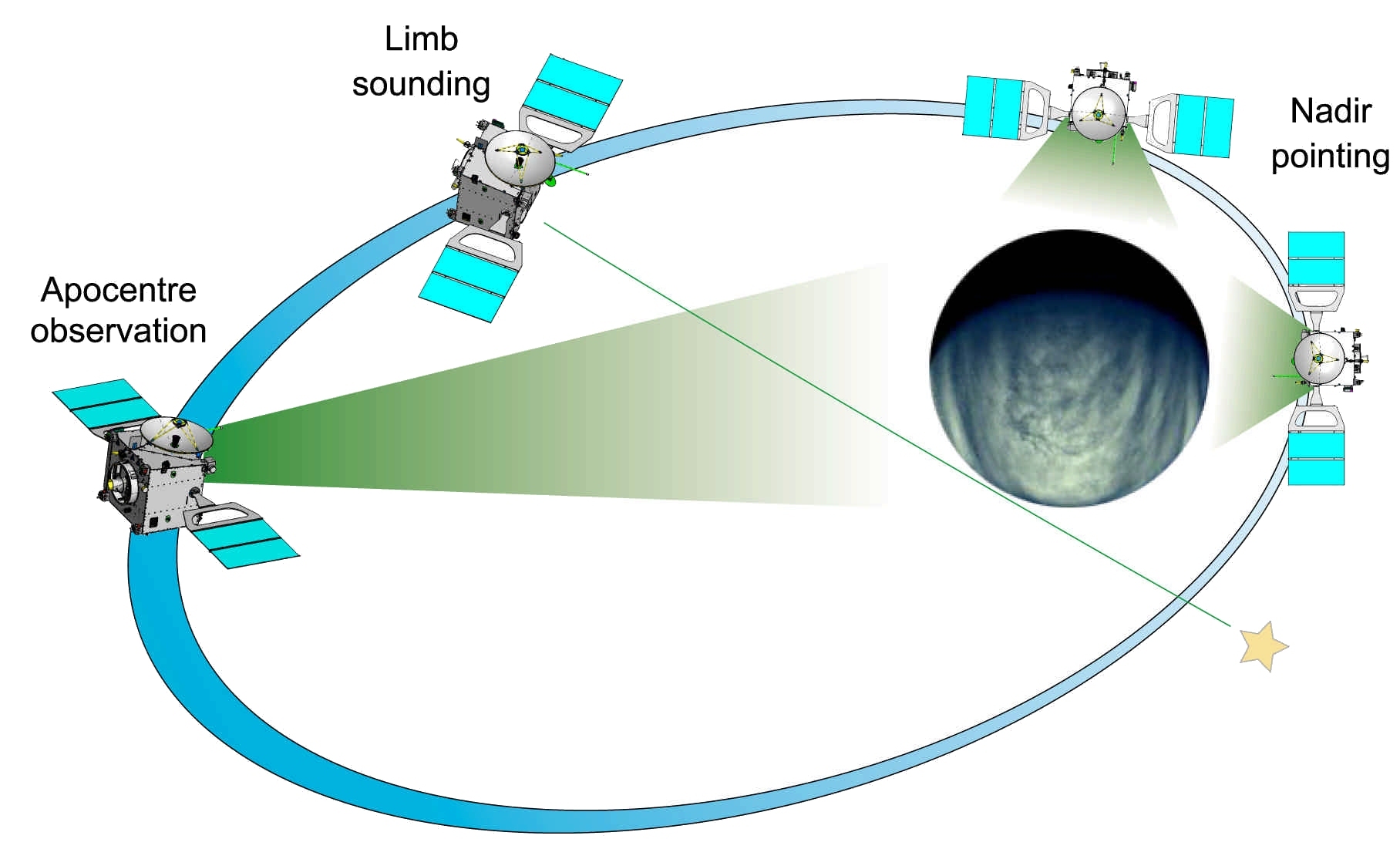

Umlaufbahn von Venus-Express während verschiedener Beobachtungsphasen; dabei handelt es sich um eine polare Umlaufbahn mit einem Abstand von 250 km bis 66000 km zur Venusoberfläche
The orbit of Venus Express with its different observation phases; the spacecraft moves along a polar orbit with a distance of 250 km to 66000 km around the planet.

The mission name “Venus Express” originated from the project′s fast realisation within only four years from the planning phase to launch as well as the use of the already existing concept and design of the Mars Express spacecraft.

The magnetometer experiment (MAG) which measures the magnetic field was developed and lead managed by the Space Research Institute of the Austrian Academy of Science in Graz in collaboration with the Imperial College London. The Institute for Geophysics and extraterrestrial Physics contributed significantly to the sensors, the magnetometer electronics and the boom. Furthermore, it was responsible for the pre-flight calibration of the instrument in “Magnetsrode”.
Venus does not posses an intrinsic global magnetic field like the Earth. Instead, the solar magnetic field carried by the solar wind piles up at Venus and forms an “induced” magnetosphere. The determination of the magnetic field properties is therefore important to understand the solar wind interaction with the dense atmosphere of Venus. By means of the magnetic field data various interaction regions resulting from the deflection of the solar wind around the planetary obstacle can be identified and characterised. The analysis of these measurements will improve the knowledge about e.g. energy transfer processes via waves in the plasma. The orbit of Venus Express is very suitable to close gaps in the spatial coverage of the measurements of previous missions and thus allows to complement our understanding of the physical processes in Venus′ space plasma environment.

The magnetometer on board Venus Express is based on the same design as the magnetometer ROMAP which was already built for the Rosetta Lander “Philae”. It measures the magnetic field vector with a sampling rate up to 128 Hz and consists of two triaxial fluxgate sensors, an electronics box and a boom (length 1m). One sensor is mounted close to the body of the spacecraft while the other is mounted at the remote end of the boom which has been deployed after launch. Hence, both sensors have a different distance to the spacecraft which allows to identify and remove disturbances of the magnetic field caused by the spacecraft. The default sampling rate is 1 Hz. In the solar wind interaction region of the planet the sampling rate can be increased to 32 Hz or 128 Hz.

Technical characteristics of the magnetometer

Parameter
Maximum range ±8400 nT
Maximum resolution 1 pT
Vector rates of sensors 1 to 128 Hz selectable
Power consumption max. 4,25 W
Total mass 2,3 kg (incl. boom, harness and multi-layer insulation)

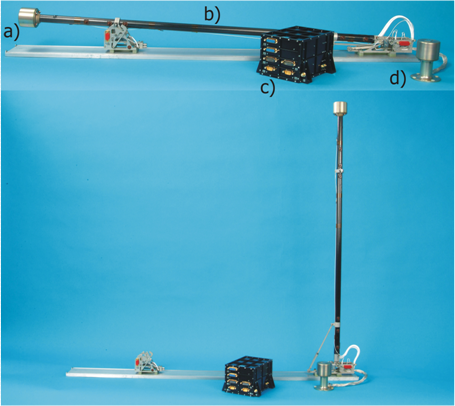

Venus-Express-Magnetometer: Der Ausleger ist eingeklappt und an der Halterung arretiert (oben); der Ausleger ist ausgeklappt und betriebsbereit (unten) a) Aussensensor, b) Ausleger, c) Elektronikeinheit, d) Innensensor
Venus Express magnetometer: Boom is locked in the holder (upper picture); boom is deployed and operational (lower picture) a) outboard sensor, b) boom, c) electronics box, d) inboard sensor.

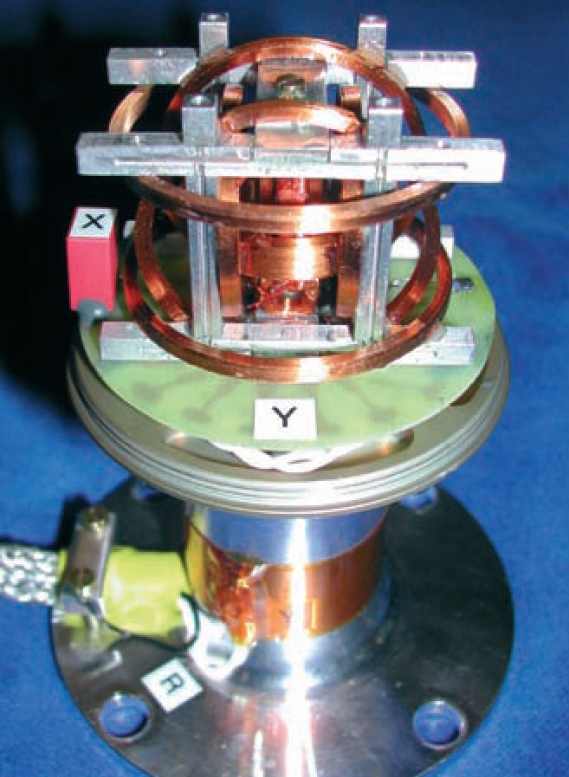

Magnetometer-Sensor
Magnetometer sensor.

The Venus Express team at the IGEP

  • Karl-Heinz Glaßmeier (MAG Co-Investigator)
  • Hans-Ulrich Auster (MAG Co-Investigator)
  • Karl-Heinz Fornaçon (MAG Co-Investigator)
  • Lars Guicking
  • Ernst Jelting
  • Ingo Richter (MAG Co-Investigator)
  • Bernd Stoll

Links

  • ESA Venus-Express
  • ESA Science & Technology
  • IWF Graz Forschung
  • IC London Venus-Express
  • DLR Venus-Express

Publications

  • Volwerk, M., Zhang, T. L., Delva, M., Vörös, Z., Baumjohann, W., Glassmeier, K.-H.: First identification of mirror mode waves in Venus&peime; magnetosheath?, Geophysical Research Letters, 35, 12204, 2008
  • Volwerk, M., Zhang, T. L., Delva, M., Vörös, Z., Baumjohann, W., Glassmeier, K.-H.: Mirror-mode-like structures in Venus′ induced magnetosphere, Journal of Geophysical Research (Planets), 113, E00B16, 2008
  • Zhang, T. L., Baumjohann, W., Delva, M., Auster, H.-U., Balogh, A., Russell, C. T., Barabash, S., Balikhin, M., Berghofer, G., Biernat, H. K., Lammer, H., Lichtenegger, H., Magnes, W., Nakamura, R., Penz, T., Schwingenschuh, K., Vörös, Z., Zambelli, W., Fornaçon, K.-H., Glassmeier, K.-H., Richter, I., Carr, C., Kudela, K., Shi, J. K., Zhao, H., Motschmann, U., Lebreton, J.-P.: Magnetic field investigation of the Venus plasma environment: Expected new results from Venus Express, Planetary and Space Science, 54, 1336-1343, 2006
  • Zhang, T. L., Delva, M., Baumjohann, W., Volwerk, M., Russell, C. T., Barabash, S., Balikhin, M., Pope, S., Glassmeier, K.-H., Kudela, K., Wang, C., Vörös, Z., Zambelli, W.: Initial Venus Express magnetic field observations of the Venus bow shock location at solar minimum, Planetary and Space Science, 56, 785-789, 2008
  • Zhang, T. L., Delva, M., Baumjohann, W., Volwerk, M., Russell, C. T., Barabash, S., Balikhin, M., Pope, S., Glassmeier, K.-H., Wang, C., Kudela, K.: Initial Venus Express magnetic field observations of the magnetic barrier at solar minimum, Planetary and Space Science, 56, 790-795, 2008
  • Zhang, T. L., Delva, M., Baumjohann, W., Volwerk, M., Russell, C. T., Wei, H. Y., Wang, C., Balikhin, M., Barabash, S., Auster, H.-U., Kudela, K.: Induced magnetosphere and its outer boundary at Venus, Journal of Geophysical Research (Planets), 113, E00B20, 2008
  • Zhang, T. L., Delva, M., Baumjohann, W., Auster, H.-U., Carr, C., Russell, C. T., Barabash, S., Balikhin, M., Kudela, K., Berghofer, G., Biernat, H. K., Lammer, H., Lichtenegger, H., Magnes, W., Nakamura, R., Schwingenschuh, K., Volwerk, M., Vörös, Z., Zambelli, W., Fornaçon, K.-H., Glassmeier, K.-H., Richter, I., Balogh, A., Schwarzl, H., Pope, S. A., Shi, J. K., Wang, C., Motschmann, U., Lebreton, J.-P., 2007, Little or no solar wind enters Venus′ atmosphere at solar minimum, Nature, 450, 654-656
