Multiphysics
  • Research
    • Structural Design & Optimization
    • Composites
    • Preliminary Aircraft Design
    • Multiphysics
    • Fracture Mechanics
    • Scaled flight tests

Multiphysics

The field of research called "Multiphysics" deals with the interdisciplinary investigation of systems with interacting physical effects. The main challenge herein is the combination of different complex solvers within a coupling scheme. An example for a multiphysical problem is the fluid-structure interaction (FSI) or aero-thermo-structural interaction, which takes also the influence of temperature into account.


Current projects

SE²A B2.4: Hybrid load reduction through fluidic and reversal control combined with non-linear structures

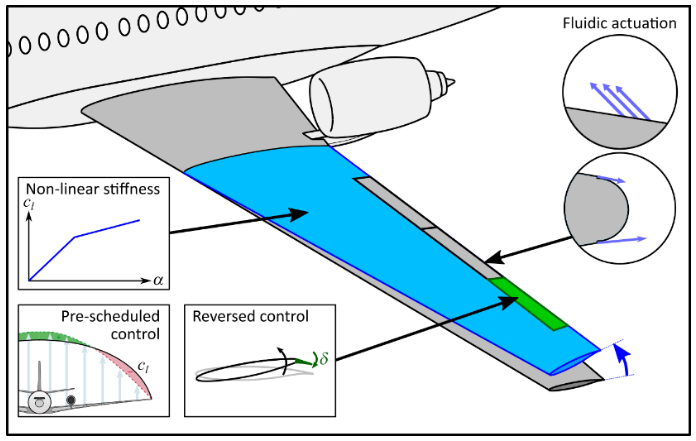

schematic representation of the load reduction principles

Funding: DFG

Duration: 2023 - 2025

Team: D. Hahn, M. Haupt , S. Heimbs

Effective load reduction enables a significant mass reduction of the primary structures of aircraft wings and - directly as well as through secondary effects - also a reduction of the overall mass of the aircraft. This leads to a decrease in energy consumption and emissions. Previous research has shown that both active and passive concepts reach their limits in reducing dynamic loads over the entire flight envelope and for the relevant load cases. This collaborative project aims to demonstrate the feasibility of hybrid load reduction concepts that combine intelligent structural design exploiting structural and geometric non-linearities with unconventional actuation methods such as fluidic actuators and control surfaces operated in 'reverse mode'.

First, reference use cases and requirements for combining the individual load reduction concepts and methods are defined. Then, the passive load reduction concept realised by non-linear structures is applied to the use cases. Parameter studies are to prepare the basic understanding for the combined concepts. Hybrid concept combinations will be developed with the project partners. The most promising ones will be selected and optimised for medium and long range aircraft configurations over the entire flight envelope. Based on these results, a comprehensive comparison of different hybrid concepts for load reduction will be conducted. The long-term goal is to first evaluate the load reduction potential and then the integration and compatibility with other systems, as well as the climate-relevant impact on the entire aircraft. This project will identify novel approaches to achieve significant load reduction, aiming at the realisation of a 1 g wing. It will also provide important insights for flight control, overall aircraft design and scaled flight demonstrators within the SE2A cluster.

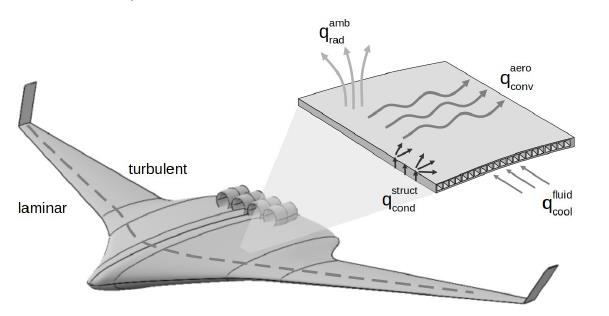

SE²A B4.1: Multidisciplinary structural design and thermal management for electric aircraft

Ausschreibung

Funding: DFG

Duration: 2023 - 2025

Team: L. Kreuzeberg, M. Haupt , S. Heimbs

This project aims to explore the current technological blank spot of how the necessary dissipation of the waste heat of the fuel cell system via the aerodynamic surfaces can be achieved, especially in unconventional aircraft configurations such as the BWB configuration. The aim is not only to develop possible technological solutions but also to develop promising methodological approaches for modelling, analysis and optimisation.
This is done in close cooperation with the partner project "B4.1: Consistent Multilevel Model Coupling and Knowledge Representation in Multidisciplinary Analysis and Design", which deals with the general methodological approach for establishing a collaborative design environment, which is also to be developed and applied here.

For the concrete application, concepts for thermal management are being developed and the hitherto unknown sensitivities resulting from the coupling of the waste heat transport from the fuel cell via a cooling fluid and the heat conduction through the surface structure to the aerodynamic surface and from there to the aerodynamic flow around it are being analysed and investigated. The focus of the work here is on the thermal-mechanical structural design of possible surface panels, including integrity and adaptivity aspects.
In addition to the precise modelling of the individual disciplines involved and their consistent three-field coupling, an integral consideration of the entire system is carried out with the help of advanced multifidelity approaches and with the partners within the subprojects B4.1 and B4.2. This enables the optimisation with focus on the interactions of the surface with the external flow field, the weight-saving design of the internal structure with integrated cooling channels.
With the collaborative, multidisciplinary analysis capability involving the individual disciplines, the design spaces will be explored, characterised, researched and exploited.

SKAiB: Scalable fuel cell systems for electric drives - Heat Exchanger

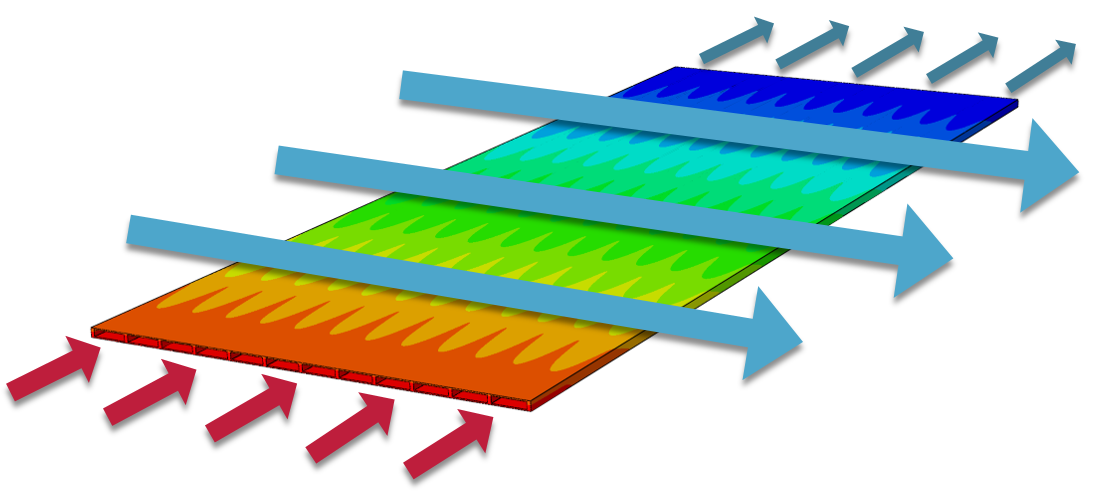

Ein warmes Fluid strömt durch Kanäle in einem flachen Hautfeld - Kalte Luft strömt über das Hautfeld

Funding: BMWK (Luftfahrtförderungsprogramm 6.2)

Duration: 2024-2025

Team: Daniel Hahn, Matthias Haupt, S. Heimbs

The joint project "SKAiB: Skalierbare Brennstoffzellensysteme für elektrische Antriebe" is working on fuel cells for future commercial aircraft. The IFL is involved in the investigation and provision of models for low-drag heat exchangers in the outer skin. The waste heat from the fuel cells is supplied to the outside air via the thermal management system using coolant. If this waste heat can be released via heat exchangers integrated into the skin, conventional, drag inducing finned heat exchangers can be reduced. In addition, a heated boundary layer can reduce the frictional resistance of a turbulent flow. The IFL is developing models of varying accuracy for the panels of such skin heat exchangers. On the one hand, high-fidelity simulations of the coupled fluid and structural behaviour in differently sized cooling channels are created. On the other hand, faster low-fidelity models are created that can be used as part of the overall design.



Completed projects

SE²A B2.4 "Morphing structures for the 1g-wing"
Beispielstruktur für passive Lastabminderung durch das Beulen einer internen Versteifung und die anschließende Verformung des Profils

Funding: DFG

Duration: 2019-2022

Team: Daniel Hahn, Matthias Haupt, S.Heimbs

The project B2.4 "Morphing structures for the 1g-wing" in the Cluster of Excellence SE²A deals with the exploitation of the non-linear structural behaviour of structural elements of an aerofoil to achieve passive load reduction. Passive load reduction means that the airfoil deforms under the aerodynamic load without additional actuators in such a way that load increases due to gusts or manoeuvres are reduced. The aim of such a limitation of the maximum occurring loads is to be able to design an aerofoil in a more weight-saving way. The structural behaviour under investigation focuses on significantly non-linear behaviour such as buckling.

The project consists of three phases, which are mainly processed with numerical methods. In phase 1, characteristic components from airfoil structures are investigated with regard to their non-linear structural behaviour. This serves the basic understanding of which parameters can be used to achieve a desired behaviour. In phase 2, the components with defined non-linear behaviour are inserted into a quasi-2D wing section and the structural models are coupled with a aerodynamic  model for an aeroelastic simulation. In this way, the deformation of the airfoil and the interaction of the deformation with the aerodynamic loads are considered in a detailed and time-accurate way.  Phase 3 extends this consideration to a complete 3D wing. In this way, more complex deformations, such as torsion to move the loads in the direction of the wing root, can be investigated and evaluated in order to finally develop suitable more weight-efficient wing concepts.

Further information on SE²A

DFG Sonderforschungsbereich Transregio 40 - Teilprojekt D3: Lebensdauervorhersage für Düsenstrukturen unter Strömungsbelastungen
Ergebnisse einer stationären Kopplung zwischen Heißgas und Struktur für ein Flüssigkeitsraketentriebwerk

Funding: DFG(Sonderforschungsbereich/Transregio)

Duration: 2008 - 2020

Team: F. Hötte, M.Haupt

In dem Forschungsprogramm SFB-TR 40 liegt der Fokus in der Erarbeitung technologischer Grundlagen für den Entwurf thermisch und mechanisch hochbelasteter Komponenten zukünftiger Raumtransportsysteme.

Im speziellen forscht das IFL in Teilprojekt D3, in Zusammenarbeit mit dem Institut für angewandte Mechanik der RWTH Aachen, an der Lebensdauervorhersage von Schubkammern unter Strömungsbelastungen. Hierbei werden am IFL die globalen Strömungs- und Strukturmodelle entwickelt und ganze Triebwerkszyklen mittels eines partitionierten FSI-Ansatzes analysiert. Die effiziente Kopplung von 3 Teilgebieten Heißgas, Struktur und superkritischer Kühlkanalströmung stellt hierbei eine methodische Herausforderung dar.

DFG Sonderforschungsbereich Transregio 40 - Teilprojekt D9: Experimentelle Untersuchung zur Lebensdauervorhersage
Grundsegment TR40

Funding: DFG(Sonderforschungsbereich/Transregio)

Duration: 2008 - 2020

Team: M. Rohdenburg, F. Hötte, M.Haupt

Das Ziel des Forschungsprogramms SFB-TR 40 liegt in der Untersuchung technologischer Grundlagen für den Entwurf thermisch und mechanisch hochbelasteter Komponenten zukünftiger Raumtransportsysteme. Innerhalb des Teilprojekts D9 sollen Experimente zur Untersuchung der Lebensdauer einer zyklisch belasteten Raketenbrennkammer durchgeführt werden. Dazu soll in Zusammenarbeit mit der TU München ein Heißgasprüfstand mit rechteckiger Brennkammer konzipiert werden. Die Heißgas- und Kühlkanalströmung sowie die Wandstruktur sollen mit optischen Messtechniken untersucht werden. Weiterhin soll ein Prinzipienexperiment an einem skalierten Kühlkanal unter rein thermischer Belastung zur Bewertung der Kühlkanalströmung durchgeführt werden.

Collaborative project SARAH (Increased Safety and robust certification for ditching of aircrafts and helicopters)

Funding: Horizon 2020

Duration: 2008 - 2020

Team: M. Müller, M. Woidt, M.Haupt

SARAH (Increased Safety and robust certification for ditching of aircrafts and helicopters) is a Horizon 2020 collaborative project, aiming at establishing novel holistic, simulation-based approaches to the analysis of aircraft ditching. The project's consortium is built up from a consortium of experts from OEM industries, experienced suppliers of simulation technologies, established research institutions and representatives of the certification authorities. Results of SARAH are expected to support a performance-based regulation and certification for next generation aircraft and helicopter and to enhance the safe air transport as well as to foster the trustworthiness of aviation services.
One major part of the expected outcomes of the project are more robust and reliable solutions for aircraft and helicopters, based on an improved understanding of novel numerical simulation technologies that incorporate complex fracture mechanics and the interaction between hydrodynamics and structural mechanics.

Further information about the Project

HyMoWi (Hybrid-Morphing-Wing: Future potential of hybrid-morphing wing) – sub project : Passive and hybrid morphing wing structures

Funding: BMWi (LuFo V-2)

Duration: 2016 - 2019

Team: S. Ko, M.Haupt

The aim of the research project PyMoWi is to significantly reducte the wing’s weight and complexity by implementing a passive and in particular a hybrid morphing of the wing geometry. The term "hybrid" is understood to refer to the symbiosis of active and passive morphing of the wing structure.
Starting point is the investigation of passive morphing wings (without or with only few actuators) with regards to the future potentials until 2050. In addition to increasing flight performance in individual flight conditions, a passive morphing wing is to be investigated in order to reduce the intensity of critical load cases. From the findings, concepts for a simplified, novel wing structure with passive and active, thus "hybrid" morphing are to be developed in cooperation with the ILR of TU Dresden. Ideally the different control surfaces can be realized in one overall morphing structure with a high innovation potential until 2050. By reducing complexity and the number of systems, additional weight is to be saved and reliability to be increased.

Further information on the project

Cooperate project "AeroStruct": Development of a FlowSimulator-OpenFSI interface
HIRENASD elastisch

Team: K. Lindhorst, M.Haupt

The aim of the project is the development of an interface between the simulation environment FlowSimulator and MSC.NASTRAN (c) via OpenFSI. This allows the usage of the nonlinear structural NASTRAN solver SOL400 in coupled aeroelastic analyses.

Verbundvorhaben "ComFliTe": Turbulenzmodellierung und reduzierte Modelle für aeroelastische Analysen und zur Lastenberechnung bei komplexen Flugzeugkonfigurationen
Vergleich CFD vs ROM anhand AGARD445.6
Comparison ROM with CFD of flutter case AGARD 445.6

Team: K. Lindhorst, M.Haupt

Das Ziel des Verbundprojekts "ComFliTe" (Computational Flight Testing) ist die Verlagerung aeroelastischer Untersuchungen aus der Flugtestphase hin zur Simulationsphase. Hierbei stellen die hohen Rechenzeiten hochgenauer aeroelastischer Simulationen mittels CFD-CSM-Kopplung einen begrenzenden Faktor dar. Aus diesen Gründen werden im Rahmen des ComFliTe-Projekts die Möglichkeiten der Vorhersage aerodynamischer Kennfelder mittels effizienter mathematischer Ersatzmodelle (Reduced Order Modelling (ROM)) untersucht. Eine besondere Schwierigkeit besteht bei diesen Problemen sowohl in der Abbildung dynamischer als auch nichtlinearer Effekte.
